Stage I Motors & Gearboxes for Power Wheels Quads
MLToys Stage I Motors & Gearboxes for Power Wheels Quads



Alternative Views:


: $150.00
: $130.00
Savings: $20.00


Product Code: STAGE-I-PHOENIX-QUAD


Installation Aids:

Heat Sink Option



Qty:
Description

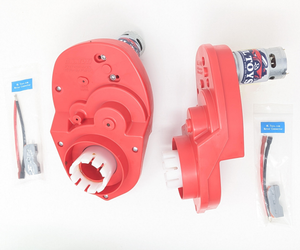

This is the Stage I Performance Motors kit for all Power Wheels brand Quads using 7R style Gearboxes and have solid axles. If your Power Wheels quad has a hollow then use our Dune Racer motor/gearboxes as a direct fit. They will not work with vehicles using 3A or 3B gearboxes. The Stage I kit is a great way to add more speed to an Arctic Cat without breaking the bank. Kit includes:
- 2 Modified Performance 550 motors - The fastest 550 motors designed for ride-ons today
- 2 Lightweight metal pinion gears
- Torque sleeves on both motors for more low end power.
- Quick-change wire connectors that require no soldering to install and allow fast install/removal of gearcases!
- Bendable motor wire tabs so as not to break as easy as stock ones.
- 2 MLToys Phoenix Gearboxes, the first gearboxes ever designed from the ground up for higher speed ride-on use!
- Fully assembled. Just swap out with your stock motor/gearboxes and follow the break-in instructions!

Motors are warrantied for up to 12 volts of SLA batteries and are often used with 18 volts (not warrantied). It is HIGHLY RECOMMENDED to add the 550 Cooling Fan Kit if you do run 18 volts. Still helpful for 12 volt vehicles too. If you're running lithium batteries you will need to use the Soft Start Low Voltage Lithium Module. We strongly recommend using our Metal First Gears when running 18 volts or more.

Just like when modifying a real car, modifying a Power Wheels voids all warranties. If you have made any non-MLToys modifications to your car you should reach out to our tech support first to check compatibility. MLToys bears no responsibility for damage to vehicle, persons, or property incurred by modifying a vehicle. Be Smart, Be Safe, and Have Fun!
Stage I Arctic Cat at 18 Volts
Phoenix Performance Gearboxes
How and Why to Break-in Motors
How to Install Staged Motor Gearboxes

Recommended Accessories
Brake Reduction Module Cap Nut Tool Dual Motor Temperature Gauge In-Dash Axle Thrust Bearing
: $11.00

Add
: $1.00

Add
: $10.00

Add
: $1.70

Add
Brake Reduction Module Cap Nut Tool Dual Motor Temperature Gauge In-Dash Axle Thrust Bearing
550 Cooling Fan Kit .437" Reusable Wheel Collar Four Point Safety Harness
: $28.00

Add
: $1.60

Add
: $19.99

Add
550 Cooling Fan Kit .437" Reusable Wheel Collar Four Point Safety Harness

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Gearbox May 16, 2022
Reviewer: Brian Zimmerman from Fairview, PA United States
So far so good. Easy instructions to follow makes installation of new motor/gearbox combo painless.
