Product code: Stage-III-DIY-Corvette

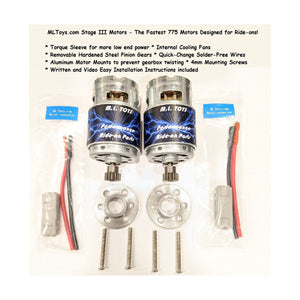

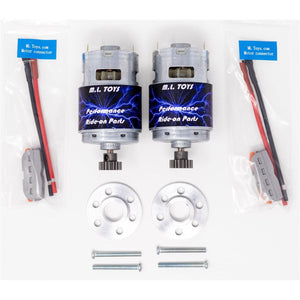

This is the Stage III Motor kit for all new Power Wheels Mustangs Porsche GT3's and C7 Corvettes/McQueens that started life as 12v. The Stage III kit is specifically designed for vehicles running at 18 or 24 volts. These motors provide 4x more off-road torque then stock motors and won't burn up even at 24v. Kit includes:
- 2 massive 775 size Modified motors with internal cooling fans
- Hardened Steel Pinion Gears attached to motors
- Torque sleeves on both motor for even more low end powers
- Quick change wire connectors with no soldering installation
- Aluminum Vented Motor Mounts to keep the motors from twisting on the gearcases.
- 4mm motor mounting screws
Please pick a pinion gear size to match the size attached to your stock motor. (Stock pinions are not re-usable)
Motors are safe for up to 24 volts. We strongly recommend using Metal First Gears when running 18 volts or more. Not for use with lithium batteries unless you use our Soft Start Low Voltage Lithium Module.
While you've got the gearboxes out we recommend switching to our Race Grease which reduces resistance in the gearboxes. This allows more top speed and cooler running motors.
Just like when modifying a real car, modifying a Power Wheels voids all warranties. If you have made any non-MLToys modifications to your car you should reach out to our tech support first to check compatibility. MLToys bears no responsibility for damage to vehicle, persons, or property incurred by modifying a vehicle. Be Smart, Be Safe, and Have Fun!
Installation Videos are in the Product Pictures.
