    24 Volt Dune Racer Motor/Gearbox/Battery Combo Pack

    Product code: Dune-Racer-24-Volt-Combo-Pack

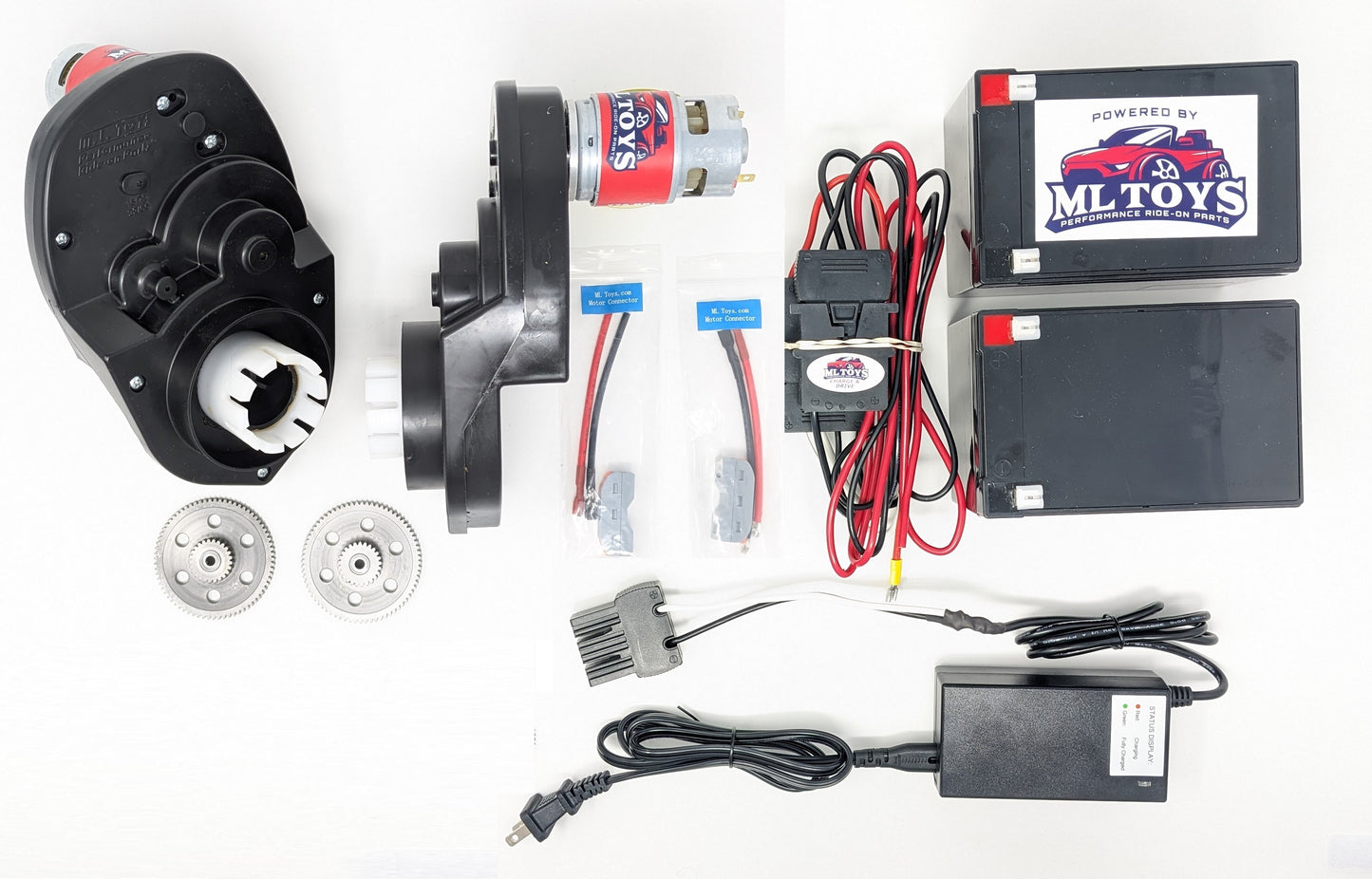

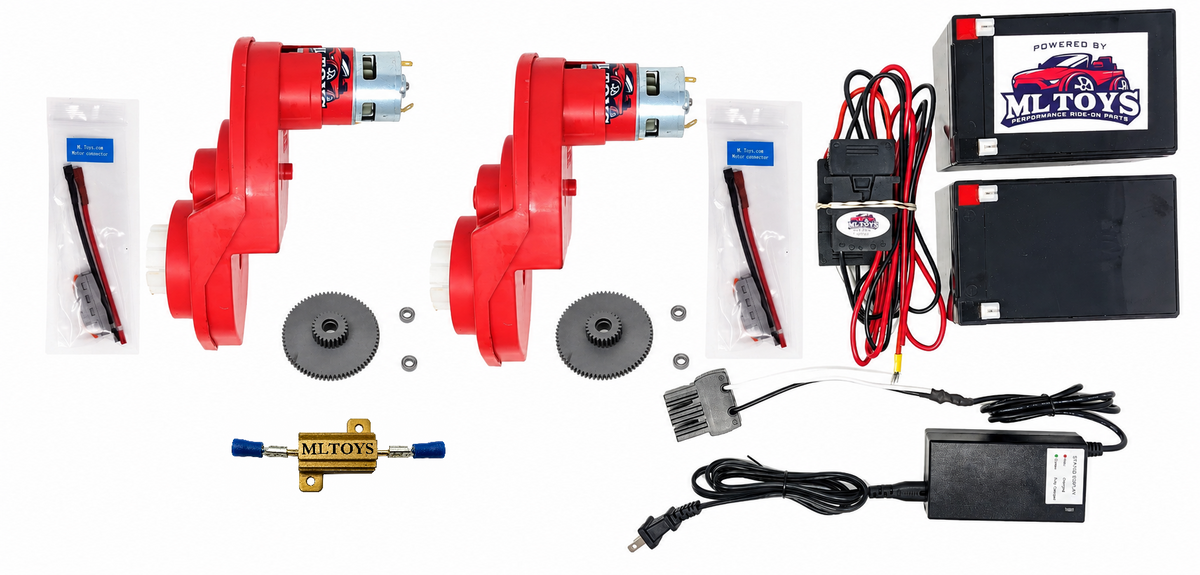

    This package combines our 775 High Performance Motors, Phoenix Gearboxes, High Capacity 24v SLA Battery pack, and Fast Charger. It is for all Powerwheels Dune Racers, Dune Racer Extremes, and other variants of the Duner Racer.

    The Stage IV kit is specifically designed for vehicles running at 18 or 24 volts. The Massive 775 motors provide insane amounts of torque for off-road and handle 24 volt loads without a care. The weakest link in the gearbox, the First Gear, has been replaced with a hardened steel first gear which also has 2 ball bearings for maximum efficiency. The thicker-then-molasses stock grease has been replaced with our Teflon Race Grease designed to coat the gears and shafts to make them more slippery and create less heat buildup. The gearbox housings and remaining gears are a new, durable design developed by MLToys' engineers. This setup is for die-hard speed addicts only. Installation is simply removing your old gearboxes and putting your Stage IV in its place. Kit includes:

    - 2 massive 775 size Modified Motors with Internal Cooling Fans pre-installed in gearboxes.
    - Torque sleeves on both motors.
    - Quick Connect Motor Wires
    - 2 Hardened Steel Pinion Gears with Lifetime Warranty*.
    - 2 Hardened Steel First Gears with Lifetime Warranty*.
    - 4 Steel Ball Bearings.
    - MLToys Teflon Race Grease for even more speed, motor durability, and more run time.
    - 2 MLToys Phoenix Gearboxes including stronger nylon gears, improved lubricating, stronger housings, and low friction race grease.
    - Fully assembled! Just swap out with your stock motor/gearboxes and follow the break-in instructions!


    The 24v Battery Conversion kit converts any 12v grey battery Power Wheels to 24 volts and allows you to go back to 12 volts whenever you want. It also increases run time 33% over the stock battery. Includes a 24 volt charger that will recharge the batteries in 6 hours. Indicator light to let you know when batteries are charged and conditioner so you don't ruin the batteries over the winter.

    Kit Includes:
    2 of our 12v 12amp batteries with 40 amp fuse and Power Wheels style connector
    1 Wire harness to put one battery in the front compartment and one in the rear
    1 24 volt fast charger-conditioner w/ Power Wheels style connector

    Just like when modifying a real car, modifying a Power Wheels voids all warranties. If you have made any non-MLToys modifications to your car please reach out to our tech support first to check compatibility. MLToys bears no responsibility for damage to vehicle, persons, or property incurred by modifying a vehicle. Be Smart, Be Safe, and Have Fun!

    Installation Videos are in the Product Pictures.

    Show Us Your Ride #mltoys

    Customer Reviews

    Based on 5 reviews
    David Pearson
    Quality parts.

    Nice quality parts. With the 24 V system this things goes really fast. It sure would be nice to have the system run a bit slower in reverse or be able to let younger drivers operate on reduced speed.


    Easy install Oh man the power he loves it. Go Fast

    Stephen Kroon

    24 Volt Dune Racer Motor/Gearbox/Battery Combo Pack

    Tony Leath
    24v dune racer motor/gearbox battery combo

    Everything worked as expected. Clear directions. Ensure you have a good axle. I damaged one of the motors with bent axle. Replaced 2nd and 3rd gear.

    John Quinn

    24 Volt Dune Racer Motor/Gearbox/Battery Combo Pack
